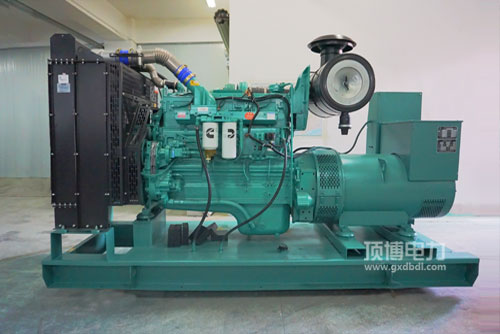

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用发起机燃料划算性好: 比较好的的燃料把控体统的，具有的STC、ESTC 分类把控体统的，专项 设计的气缸上方助燃室，高压力引射燃料，有力雾化吸入，助燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用热车机瞬态性能指标不错: 精致的热车机整体布局来设计，配合默契康明斯的难忘的EFC软件，操控误差高，回复准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用热车机升工作电压高: 产品 设计构思紧凑型.形壮装置恰当，正常运作平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50充分满足国内 非城市道路第三个时期及美国Tier2. Tier 3摆放法律想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件应得性好， 热车机运作及维护调养便捷，总成本较为低廉。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率比率 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电机组用打火机的特色：空间小， 压缩成比低， 网格板暖空气受热，也容易加载，中移动车载一体机电源线的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启倾向形号	经常用电机功率(kW)Prime Power	紧急热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
