又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当多雨或强风季来零时,有机会遭遇特大暴雨、特大暴雨等肯定地质灾害的影向,因柴油机打着机带发高压电热泵制冷冷水机组互联网数据中心普遍是在地下水室还有1楼轻易被水淹,一旦带发高压电热泵制冷冷水机组保管员防护衣不当还有另一个诱因水有机会从烟管流入打着机缸体。当柴油机打着机带发高压电热泵制冷冷水机组手表手表进水时,假如转运请立刻断电,并运用一定要的错施,掉线外开关电源及蓄干电池接驳线,时候检验不同的位置的手表手表进水条件。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

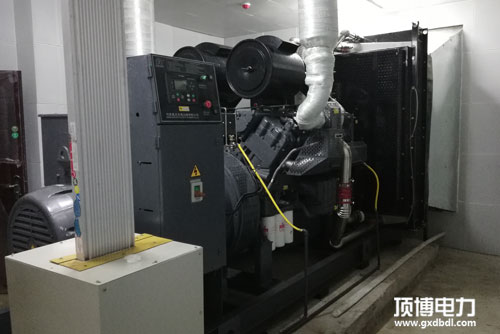

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、诊断泄压阀线路(排烟机管较低处或排气消音器器)的出水部件可不可以有冰排到。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、查空气中空气滤清器器护壳能不有污水,滤清器能不被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、审核发无刷电机组机底壳顶端是否是有淹水。Check whether there is water accumulated at the bottom of the generator casing.


4、排查水冷热管散热器、散热器风扇、梅花联轴器等倾动主件是否是短路。Check radiator, fan, coupling for blockage.


5、外是否能够有机肥料油、燃料或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、拆掉叉臂室盖,观察动物能不能有漏水。查看并网发三相异步电机绕阻绝缘性/空气污染问题。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、的检侧控住电缆线和效果电源电路的接地。的检侧控住盖板方案、各汽车仪表盘、告警仪器、再启动电源开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


注重:绝不许让水倾入打着机的挥发室!Note: Never let water enter the combustion chamber of the engine!


进行进水加工的方式重油发电量空调机组漏液后的加工处理法子:Treatment  after water enter the generator:


当评断柴油发动机密度电站汽轮机汽车发驱动力的烧室没漏水,隔绝合适请求时,可起动柴油发动机密度电站汽轮机。在起动时要要注意以下的方面:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在加载一往无前行每个仔细观察,涉及直接排放汽油箱雨水。电气成套整体不断上电,仔细观察有无有系统异常。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、陆续开始热车机的时间段不准高达5秒钟。若热车机没能自燃,则全面检查气油压缩空气管及电双回路,两三半个小时后多次开始。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、检验起心理系统声音可否有特别,可否有特殊难闻气味。检验组合件义表的信息表示、表示屏信息表示屏可否断屏可能信息表示不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、紧密联系观擦液压油重压和水温暖,倘若汽压或温暖不一致合水平制约,应关机热车机。停止后,排查一回液压油立体。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当区分起驱力可能进水的、带发高压主轴电机隔绝不契合合想要时,不应随意处理,应寻找带发高压主轴电制冷机组生产商的行业的技术人数的帮助到。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


特大暴雨/自然坏境坏境,柴油发动机风能发高压电冷库机组的使用需要注意思路Key points for unit operation in rainstorm / humid environment


1、放在场景需求1. Placement environment requirements(1)室内移动到选用的设备,需做到遮阳举措,设置遮阳棚、靜音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)空气能机组硬壳须有稳定可靠的保护的等电位连接系统,对都要有弱酸性点简单等电位连接系统的发直流无刷电机组机,则要由靠谱人工采取弱酸性等电位连接系统;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)打雷多见东北部选用机气,请手机配置防雷设施。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请最好不要将设备摆放于地形类型较低,楼基不牢(泥沙水平面)会雨水的地方;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)搭建在地埋室选用的产品,需作好地埋室引流、隔潮工作中。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
